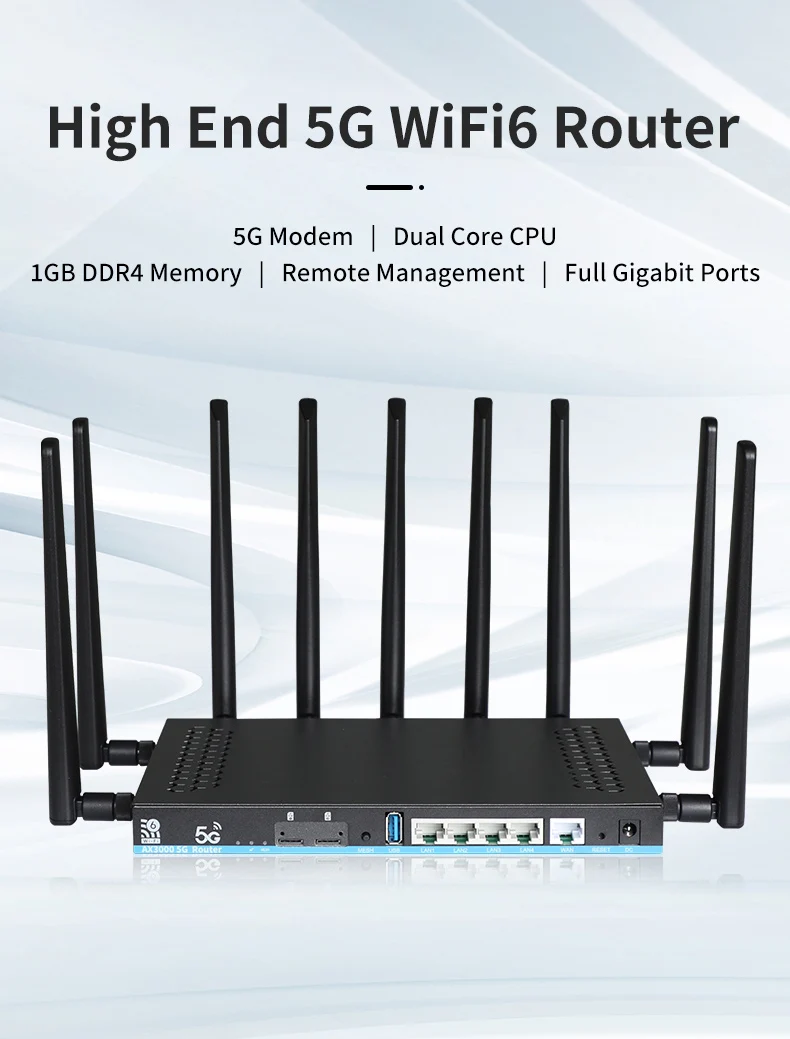

Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router
£56.51 – £219.60
Description
Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router
Please NOTE: ‘Support Sim’ means the device could work with Sim sard; ‘Without Sim’ means cannot.
‘Support Sim’ already installed the 5G module, it’s Quectel RM520NGL, kindly contact us if any issues, thanks.
Main Features:
MT7981B with ARM Cortex-A53 dual-core CPU, 1.3Ghz main frequency;
1WAN+4LAN gigabit network port;
Built-in M.2 interfaces for installing 5G modem;

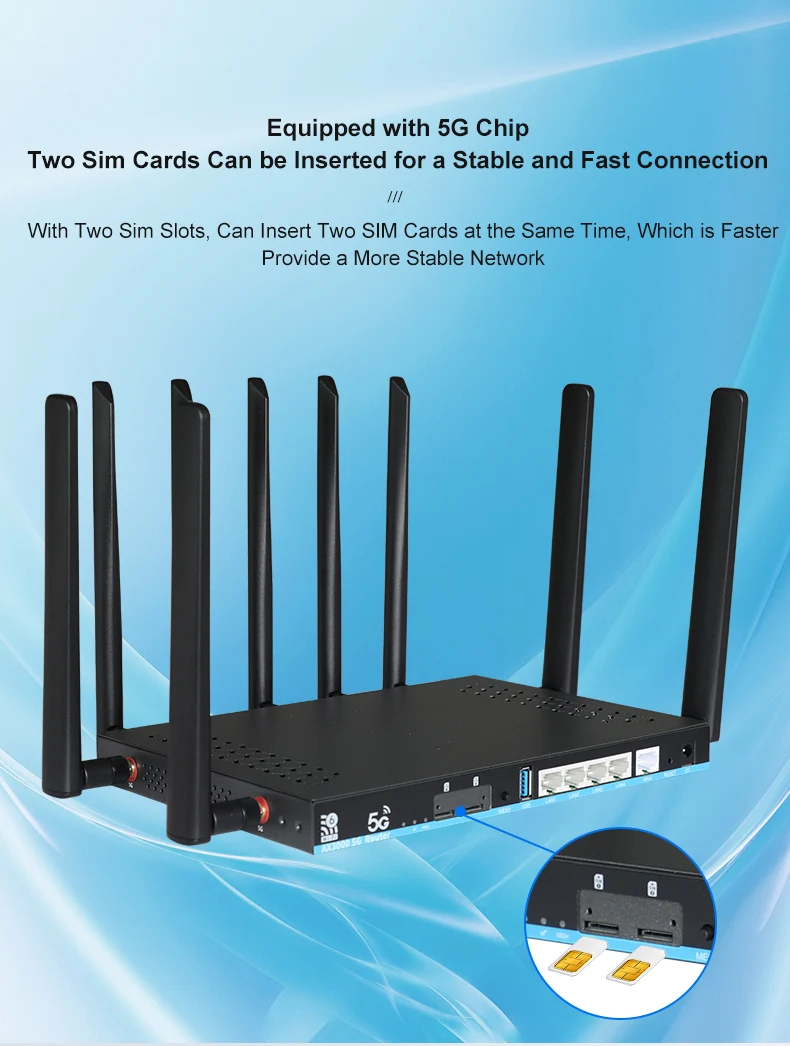

External Nano SIM card;
9pcs detachable 5dBi antennas;
1WAN+4LAN gigabit network port;
Built-in M.2 interfaces for installing 5G modem;
External Nano SIM card;
9pcs detachable 5dBi antennas;
Specification
5G Cellular |
①5G Chip: Qualcomm Snapdragon X62 Baseband |
②5G Network: SA (Standalone) and NSA (Non-Standalone) |
③5G NR NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
④5G NR SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
⑤5G Standards: 3GPP Rel-16 Technology |
⑥5G SA Sub-6 Max Transmission Speed:DL 2.5 Gbps; UL 900 Mbps |
⑦5G NSA Sub-6 Max Transmission Speed:DL 3.3 Gbps; UL 600 Mbps |
4G LTE |
①LTE Category: DL Cat 19/ UL Cat 18 |
②LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
③LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48 |
④LAA:B46 (only support 2 × 2 MIMO) |
⑤MIMO: DL 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B38/B41/B42/B43/B48/B66 |
⑥WCDMA:B1/B2/B3/B4/B5/B6/B8/B19 |
⑦GNSS:GPS/GLONASS/BeiDou (Compass)/Galileo |
⑧4G Transmission Speed: DL 1.6 Gbps; UL 200 Mbps |
WiFi 6 Details |
①Working Frequency: 2.4Ghz:600Mbps, 5.8Ghz:2400Mbps |
②Modulation Method:1024-QAM / OFDMA |
③Max Users: About 100 Clients |
④WiFi Protocols:2.4Ghz:IEEE 802.11 B/G/N/AC/AX,5.8Ghz:802.11 A/AC/AX |
⑤Antennas:2pcs 5dBi External Antennas for 2.4Ghz WiFi,3pcs 5dBi External Antennas for 5.8Ghz WiFi,4pcs 5dBi External Antennas for 5G Cellular |
Data Network |
① Mobile 4G 5G Cellular Connection (Support APN) |
② Gigabit Network Ports |
③MESH: WiFiSon Mesh Networking |
④2.4Ghz/5.8Ghz WiFi |
⑤VPN Passthrough and VPN Client (L2TP ,PPTP, OpenVPN etc) |
⑥Webpage / APP/ Remote Management |
⑦Recovery Mode Firmware Upgrade |
⑧IPV4/IPV6 |
Hardware Specs |
①Main Chip:MT7981B |
②Memory:128MB Nand Flash+1GB DDR4 Ram |

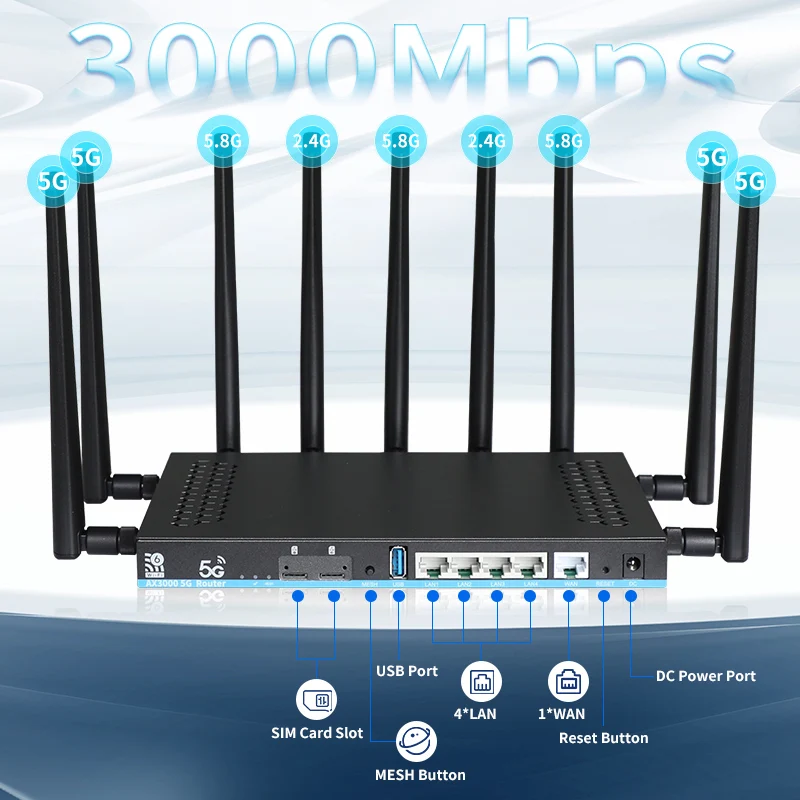

③Ethernet Ports: 1 *GE Wan Port, 4*GE Lan Ports |
④Sim Card Slot: Nano Sim Card Slot |
⑤Buttons:1*Reset Button,1*MESH Button |
⑥DC Power Supply: DC 12V/3A |
⑦Woking Temperature:0℃~40℃ |
⑧Power Consumption:<20W |
Product Description
Packing & Delivery
1*Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router in gift box;
20*Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router in carton box;
20*Sim Card Router WIFI 6 Modem Wireless 3000Mbps Wifi 5G CPE Router in carton box;
Company Profile
Welcome to Shenzhen Zhibotong Electronics Co., Ltd. established in 2010, located at Longhua District, Shenzhen, China. ZBT is a manufacturer which consists of 300 staff, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, especially for processing OEM/ODM. Products include openWRT wifi routers,3G/4G routers, Vehicles router, AP, Outdoor CPE, and LTE CPE.ZBT is also a Wi-Fi coverage service provider, that provides solutions for hotels, schools, hospitals, enterprises, airports, and vehicle fields. We have built long-term cooperation with Mediatek, Broadcom, and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Till now, ZBT’s products have been exported to over 30 countries and regions. Our main customers are China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in the USA, and Smart in the Philippines. We also take part in different Communication Fairs, such as MWCA in the USA, Gitex in Dubai, Cebit in Germany, and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products, to satisfy clients’ new coming requests. Customer satisfaction is what ZBT continuously pursues. ZBT warmly welcomes everybody joining in and building win-win cooperation.
Certifications
Exhibition
FAQ
Can you print the Customer logo on products?
Yes, we can print your logo on products.Do you provide PCBA board orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.Can you design products as per the customer’s requirements?
Yes, of course. We have our R&D department, we can design and produce at the same time.Do you….?
Maybe, why don’t contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
Yes, we can print your logo on products.Do you provide PCBA board orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.Can you design products as per the customer’s requirements?
Yes, of course. We have our R&D department, we can design and produce at the same time.Do you….?
Maybe, why don’t contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
Additional information
| Model Number | S600(WiFi6), S600(WiFi6+5G) |
|---|---|
| Color | black |
| Number of USB Interfaces | 1 x USB 3.0 |
